Physics Tension of the Elevator

Cbarker1

Active member
Jan 8, 2013
255
Dear Everyone,

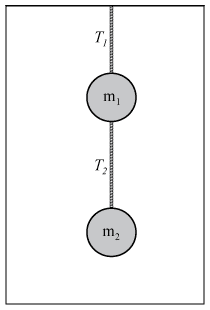

A sphere is attached to the ceiling of an elevator by a string. A second sphere is attached to the first one by a second string. Both strings are of negligible mass. Here $m_1=m_2=m=3.52\text{ kg}$.



(a) The elevator starts from rest and accelerates downward with $a=1.45\,\dfrac{\text{m}}{\text{s}^2}$. What are the tensions in the two strings?

(b) If the elevator starts from rest and accelerates upward with the same acceleration, what will be the tension in the two strings?

(c) The maximum tension the two strings can withstand is 80.0 N. What maximum upward acceleration can the elevator have without having one of the strings break?

I would need to some help to setup and find the value of Tension of the cable one.

Thanks,

Cbarker1


skeeter

Well-known member
MHB Math Helper
Mar 1, 2012
980
(a) ...

$m_2g - T_2 = m_2 a$

$m_1g+T_2-T_1 = m_1 a$

------------------------------ sum the two scalar equations ...

$(m_1+m_2)g - T_1 = (m_1+m_2)a$

$(m_1+m_2)g - (m_1+m_2)a = T_1$

evaluate $T_1$, then determine $T_2$


(b) ...

$T_1 - (m_1g + T_2) = m_1a$

$T_2 - m_2g = m_2a$

same drill ...

I'll leave part (c) for you to try
